Truck mounted water well drilling rig

Home / Products / Truck mounted water well drilling rig / BZC400CJHW Truck mounted drilling rig
  • BZC400CJHW Truck mounted drilling rig

BZC400CJHW Truck mounted drilling rig

Description:BINZUAN dilling rig,water dilling rig,Diesel Power Type water well drilling machine,new condition hydraulic water well drilling equipment

Ordering hotline:+86 543 3325896

Send mail to us:welldrillingrig@126.com

Make an inquiry

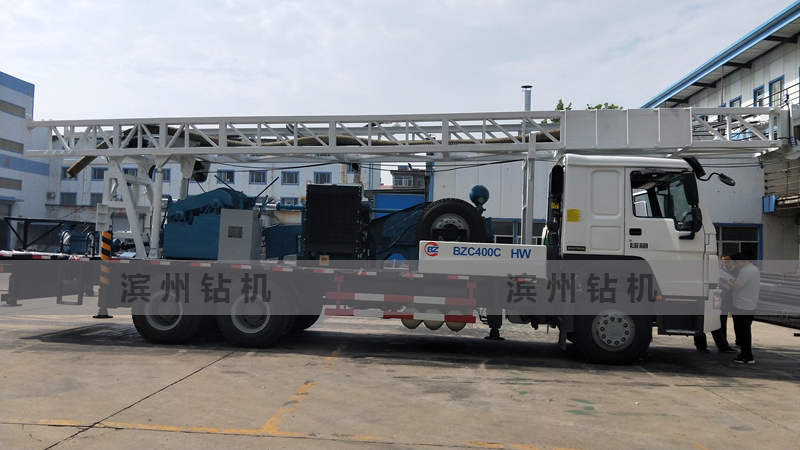

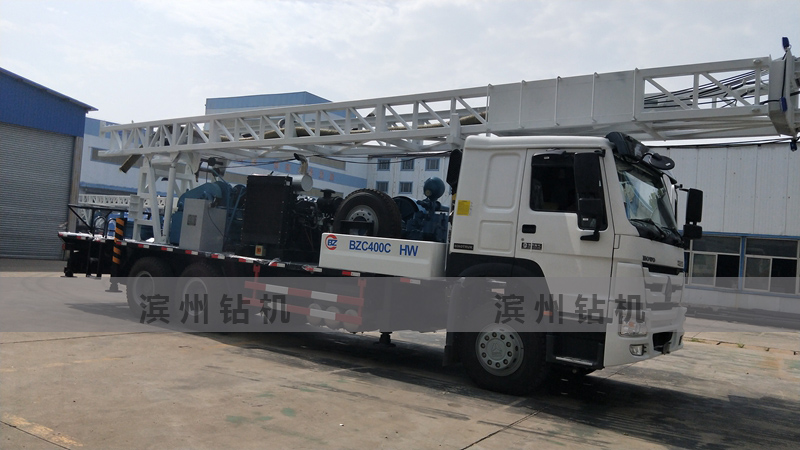

BZC400CJHW Mobile water well drilling rig

1. with HOWO brand chassis 6X4 or 6X6 form

2. Drilling power: COMMINS brand diesel engine 112KW

3.  Drill different layers, such as soil layer, clay layer, rock layer etc.

4. Drilling with mud pump, air compressor+DHT hammer, Air foam etc.

5. Easy to operate and maintainance。


 BZC400CJHW mobile water well drilling rig



1. The drilling rig has four hydraulic jacks; they can act together or separately to make balance and the rear jack can stretch out which keep the balance.With hydraulic tower, easy to operate.


2.Double mechanical winches,mud pump, rotary table,mast, kelly are installed on the chassis, removable more convenient.


3.The main parts of drilling machine  such as  The winch, turntable,gearbox,tower,chassis are made by our factory;

the performance are stability.


4.The drilling rig can be used in  People and livestock drinking water ,farmland irrigation, water source development,drilling water wells,industrial production water supply drilling geothermal wells ,road construction pile foundation ,geological explorations etc.


5.The drilling rig easy operation, easy to repair,high efficient and is the good  choice of customer.





Parameter

Drill depth

400 (m)

Drill rod

89mm (3-1/2”)

Winch capacity

Main hook lifting capacity  kN

240

Auxiliary hook lifting capacitykN)

160

Max- rope speed of main winchm/min

60

Max- rope speed of Auxiliary winchm/min

60

Rotary table

Inner diameter mm

500

Rotate speed rpm

9676442412

Max-torquekN.m

25

Mast

Heightmm

11900

Rated loadt

28t

Drill tool

Kellymm

108*108*7500

Drill rodmm

89*5500

mud pump

Displacement 850L/min

Max Pressure 2Mpa

Displacement 300L/min

Max Pressure 3Mpa

Diesel engine

Cummins 6BT5.9-C150

112KW/2200rpm

Transportation size

L*W*H mm

12500*2500*4000
