  • BZCD300 full hydraulic multi-function car rig

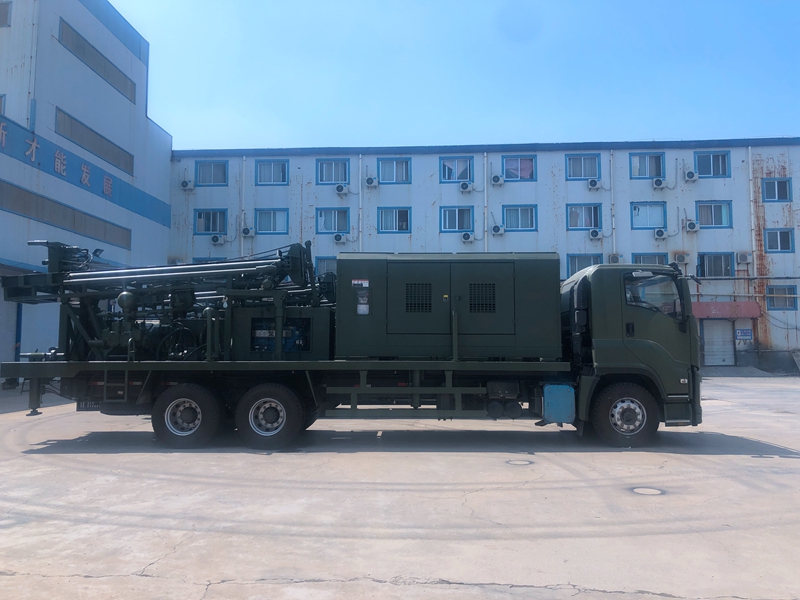

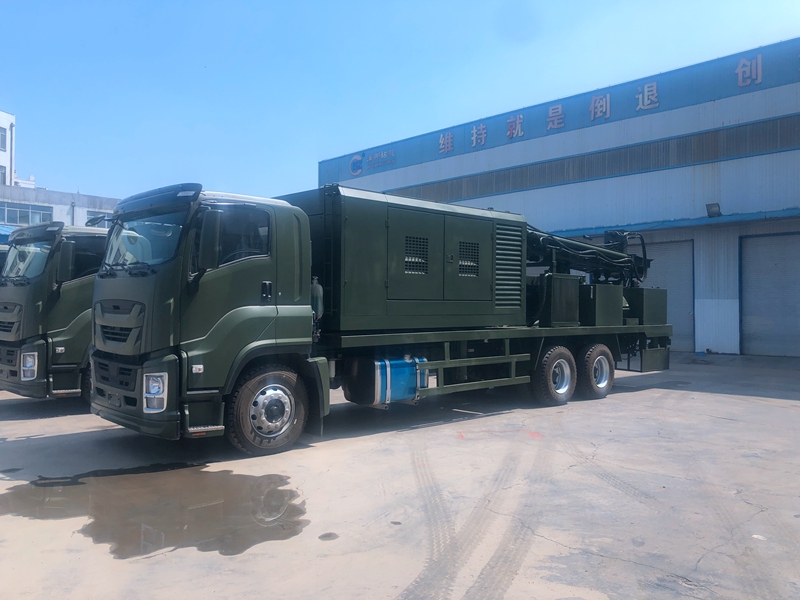

BZCD300 full hydraulic multi-function car rig

Description:

Ordering hotline:+86 543 3325896

Send mail to us:welldrillingrig@126.com

Make an inquiry

1.BZCD300 drill is a kind of new type, high efficiency, multi-function hydraulic car rig, it is mainly used for drilling Wells, monitoring well bore, geothermal air conditioning, water and electricity cofferdam grouting, the dam seepage grouting hole, foundation reinforcement grouting hole, open-pit mining, anchoring, national defense engineering, etc. All kinds of deep hole drilling process.

2. The rig is equipped with high power hydraulic motor, hydraulic drill arm, can undertake DTH hammer drilling, and equipped with large flow slurry pump, can realize mud drilling.

3. The mud pump, air compressor, all in the same car chassis, and equipped with foam pump, convenient, efficient, the overall performance is higher than other type drilling rig.

4. According to customer requirements, can be equipped with independent diesel engines, electric welding machine, etc.

5. Can according to customer demand construction chooses the mud is circulating drill, pneumatic DTH hammer drilling, air circulation drilling machine, hydraulic DTH hammer drill, and other process.

The depth of the drilling300M

Hole diameter: 500 MM

Dimension: 12000 * 2550 * 3500 MM

The weight: 26000 KG


The name of the

model

parameter



Automobile chassis

Special chassis

庆铃 6*4

rig





The bearing capacity of tower: 25 t

Two hydraulic cylinders

Oil cylinder rig height: 6 m



 Ascending to the oil cylinder





Pull up: 12T  Pull down: 20T



Hydraulic leg





The four hydraulic leg

Equipped with hydraulic zobah valve, avoiding hydraulic valve leakage

The drilling power



Chassis take force

winding



1 t lift

Power head





Torque: 8500 nm

Speed: 0-90 RPM

Foam Pump:





Traffic 42 l/MIN

Pressure: 4 mpa

Improve the efficiency of drilling cuttings up and down, the impacter cooling and lubrication



Work station



Integrated work station

Lift the boring tower, support oil cylinder, lift, power first

The system pressure gauge, etc.

Air compressor



Pressure: 2 mpa flow: 29 m3 / min

Mud pump





Traffic: 600 l/M pressure: 3 mpa
