Truck mounted water well drilling rig

Home / Products / Truck mounted water well drilling rig / BZC300CJDF Truck-mounted water well drilling rig
  • BZC300CJDF Truck-mounted water well drilling rig

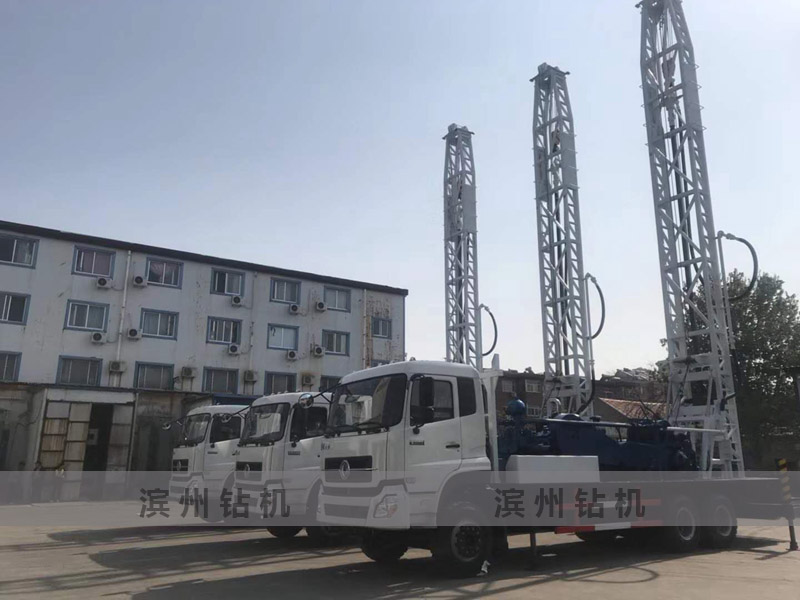

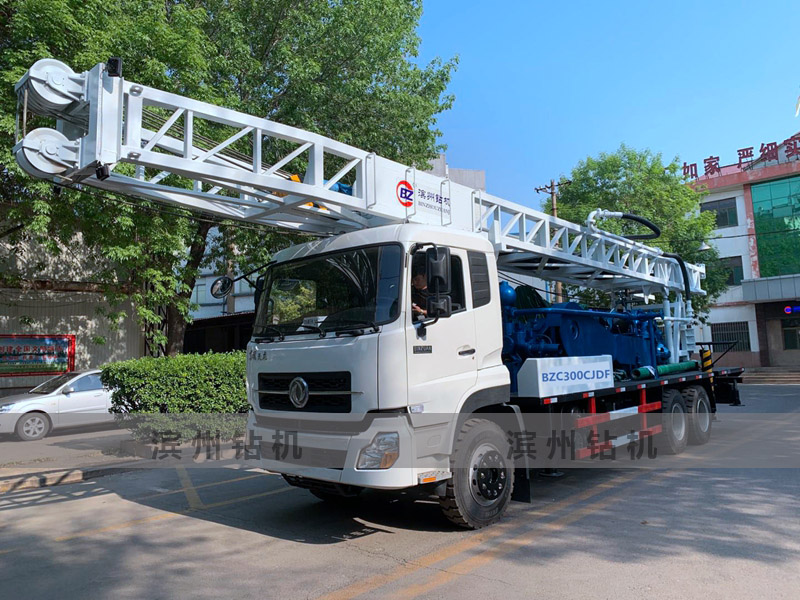

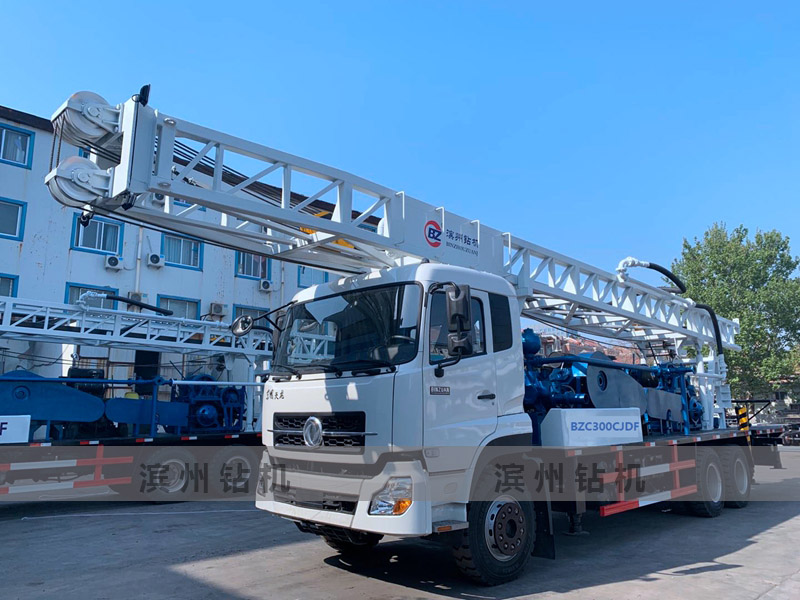

BZC300CJDF Truck-mounted water well drilling rig

Description:

Ordering hotline:+86 543 3325896

Send mail to us:welldrillingrig@126.com

Make an inquiry

BZC300CJDF truck mounted water well drill rig is the circulation rotary drilling rig. The drill to choose dongfeng 8 x 4 drill chassis, emission standard euro III, tire 10.00 R20

Does the drilling machine structure is compact, chassis adopts independent yuchai co., LTD., production, model YC6J180-33 diesel engines, emitter, three power 132 kw / 2500 RPM is powerful.

Rig is equipped with a mechanical main hoist and hoist, main hoist has big lifting force, the characteristics of fast speed, can meet the needs of normal drilling, and have the ability to handle general borehole accident.

Does KouKa plate in a hydraulic oil cylinder control well, closes the card board, to implement the binding or let go of tool joint.

Pneumatic integration design, pneumatic remote control clutch BW600 high pressure mud pump, a high degree of automation, simple operation.

When drilling rig is equipped with four hydraulic leg, two mechanical leg. Each hydraulic support oil cylinder piston rod with threaded with lock mother, drill leveling mother locks available after the oil cylinder lock. In this way, even if the oil cylinder leaks, chassis will not instability.

Does turntable is stir bar type, internal adopts spiral arc gear transmission, transmission torque, is two times of similar drill at home and abroad.

When hydraulic system adopted a system of open or manipulation of the separate, avoid the wrong operation. Equipped with oil temperature heater in winter, the summer oil temperature radiator, to adapt to different seasons hydraulic oil heating and cooling.

cylinder, using the cylinder driving wheel ratchet, remove the first wire drill pipe joint, reoccupy rotary reverse unloading rod, in case of impact damage when unloading rod drilling rig gearbox.

The serial number



The name of the





parameter

1

Auto chassis drill tool



DongFeng8*4

2

Effective height

 MM

14960

3

The maximum load

 KN

300

4

The static load



KN

300

5

Maximum torque

KNm

13.2

6

Hoist lifting force



KN

300

7

speed



r/min

0-139

8

size



MM

500

9

The largst production

L/min

600

10

The biggest work force

 MPa

6.3
