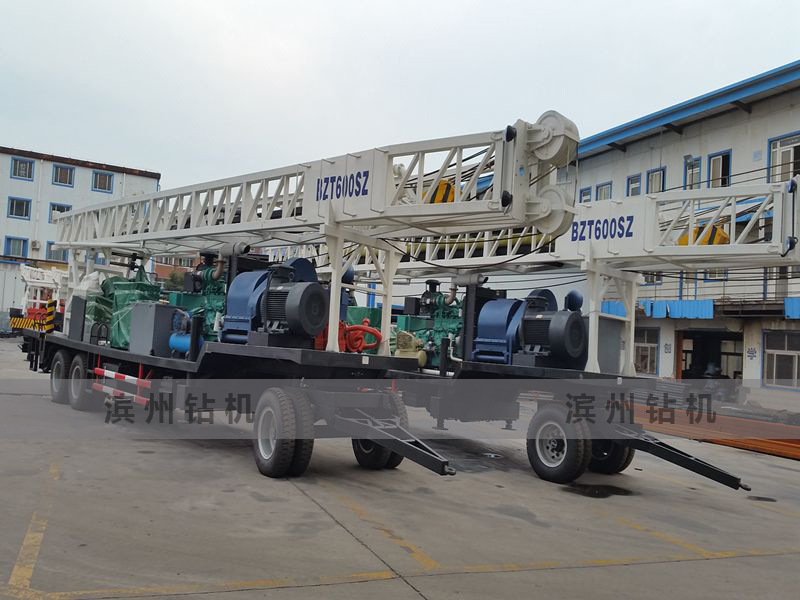

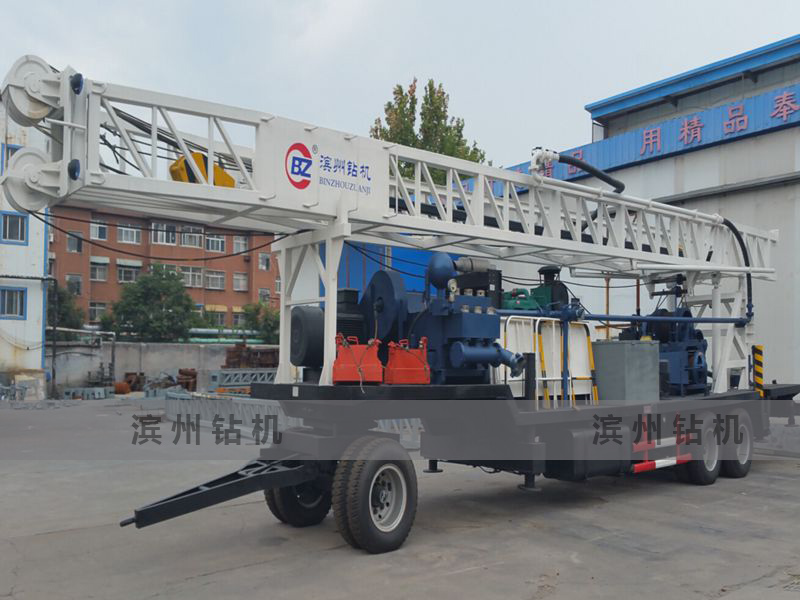

BZT600 tralier mounted drilling rig

Description:BZT600 tralier mounted drilling rig

Ordering hotline:+86 543 3325896

Send mail to us:welldrillingrig@126.com

Make an inquiry



Main features

BZCT600 drilling rig is installed on a trailer together with diesel generator, large displacement piston pump, double-hoist, turntable, drilling tower, auxiliary unloading cylinder and other components. It can be traction through tractor or truck. It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder use locknut. So, even if the cylinder leaks, the chassis is not instability. This drilling rig equipped with an auxiliary unloading cylinder, it can be used to promote the turntable ratchet, to achieve auxiliary unloading the drill pipe. The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.


Technical parameters

Drilling depth(M)

600

Drilling diameter(mm)

500

The capacity of main hoistKN

240

The capacity of assistant hoist(KN)

120

The height of tower(mm)

12000/15000

Bearing(KN)

300

Drill pipe(mm)

Ф89×10

Diesel generator

Model

SGCG-200

Rated power(KW)

200

Frequency(Hz)

50

3NB-130 piston pump

Rated flow(L/s)

8.4-16.6

Work pressure(MPa)

5-10

Working size(L*W*H)(mm)

15100×2480×14170(17170)

Transport size(L*W*H)(mm)

15100(16630)×2480×4100
